Numero di articolo: 3001200140

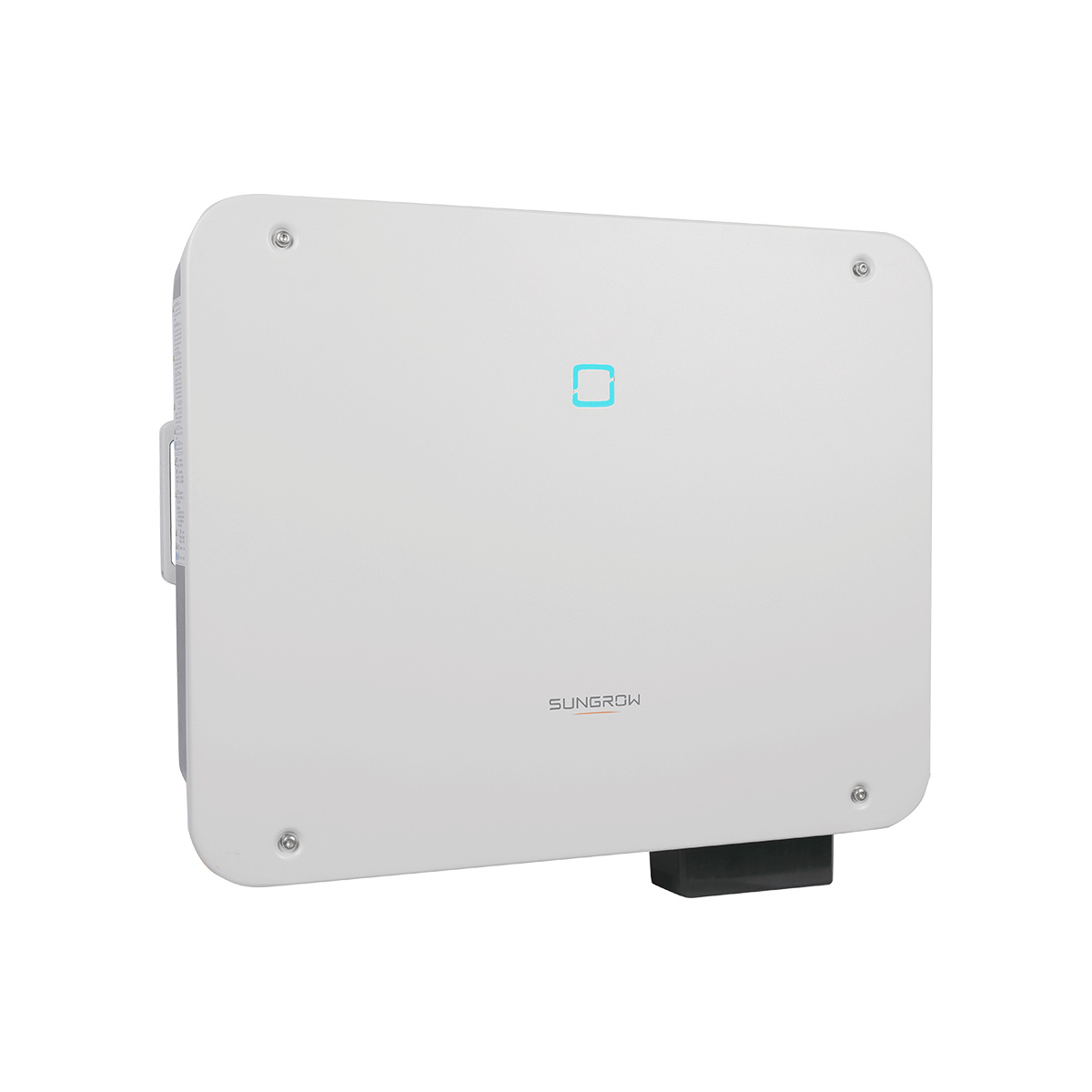

Sungrow SG40CX-P2 V12
Inverter trifase
Prices and availabilities visible only after login
Merkmale
Profondità [mm]
245
Larghezza [mm]
645
Altezza [mm]
575
Peso [kg]
40
Tipo di connettore CC
MC4
Tensione massima CC [V]
1100
AC-potenza nominale [VA]
40000
CC-potenza nominale [W]
56000
Efficienza massima () [%]
98,5
Numero di fasi di immissione in rete
3
Numero di trackers MPP
4
Tipo di inverter
Di rete
Protezione IP
66
N. di registrazione RAEE DE
28316743
Descrizione
AC output power: 40000VA
Max. PV input Voltage: 1100V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 645 / 575 / 245 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
Max. PV input Voltage: 1100V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 645 / 575 / 245 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11
VDE-AR-N 4110:2018-11
Not for Austria! No TOR D4
VDE-AR-N 4110:2018-11
Not for Austria! No TOR D4
Attention, if the inverter is operated in a system where more than 1000V DC voltage may occur, then the enclosed MC4 field plugs and sockets must not be used. In this case please use Evo2 plugs or sockets.
Download
